Sulzer loom spare parts
Spares for Sulzer projectile weaving machines, supplied to order.
The line the firm started with in 1996, and still the one it is known for across the weaving belt. Bhilwara runs on projectile machines, and a machine that has stopped is losing money by the hour.
A projectile loom wears in known places. After enough years you stop needing the catalogue: the part comes out of a cloth bag, and you know what it is, what it fits and whether it can be had.
Bring a part number, a drawing, or simply the worn component. It will be identified and sourced — and if it cannot be got, you will be told that rather than left waiting on it.
Specification
- Machines
- Sulzer projectile: PU, PU D1, PU D2, TW11, P7100, P7150, P7200, P7300
- Supplied against
- Your part number, your drawing, or the worn part itself
- Part numbers
- Not published here — quoted against the number or sample you send
- To quote we need
- Machine model and width, and the part number or the old part
- Felt items
- Washers, oil wicks and damping pads cut to the machine
Ranges are the standard the material is made to. Tell us the size, thickness and quantity you need and it will be quoted against them.
Typically used for
Machines covered
Part groups

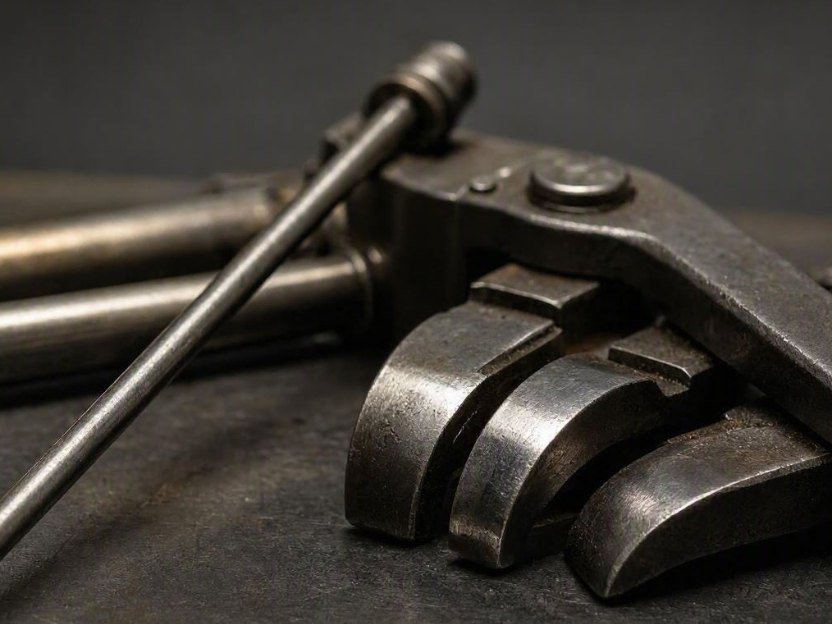

PickingPicking shoes, picking links, picking levers, torsion rods, picking lock components
- Looks like
- Hardened steel parts from the mechanism that throws the projectile across the loom.
- Feels like
- Heavy for their size. Wear shows as bright polished patches on the working faces.
- Comes as
- Ordered in as needed. Some are held, some are sourced to order.
- Tell us
- The part number if you have it, or send us the worn part.

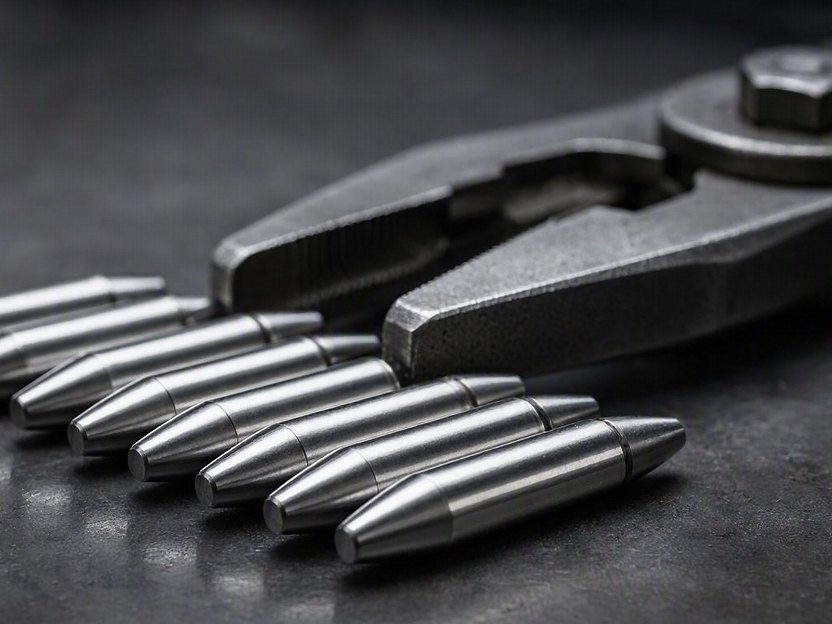

Projectile handlingProjectiles, projectile grippers, feeders, returners, lifters, openers
- Looks like
- The projectile itself and the parts that catch, hold and return it.
- Feels like
- Precision steel. Small differences in wear change how the loom runs.
- Comes as
- Ordered in as needed.
- Tell us
- Your machine model and the part number, or send the worn one.

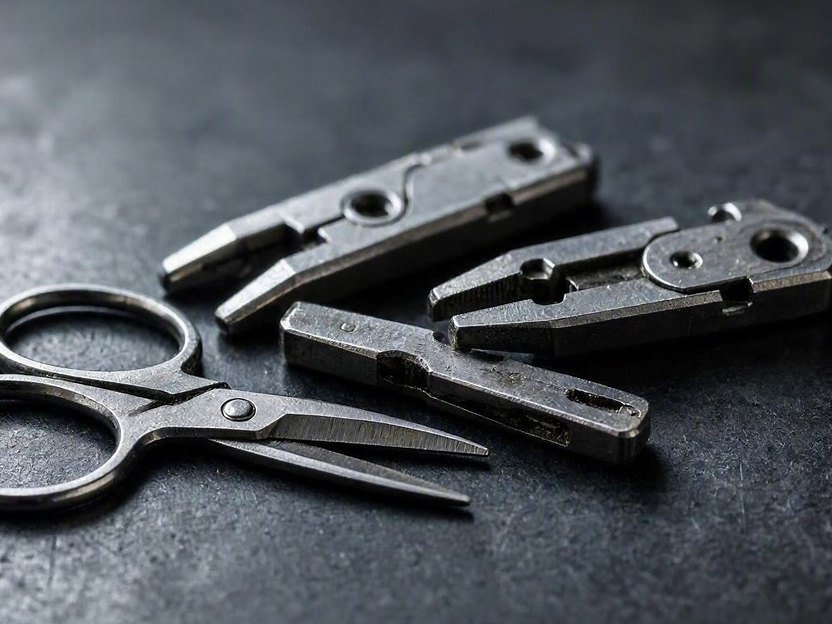

WeftWeft end grippers, scissors and cutters, selectors, FAS openers
- Looks like
- Small gripping and cutting parts that handle the weft thread.
- Feels like
- Light and fine. Cutting edges dull rather than break.
- Comes as
- Ordered in as needed.
- Tell us
- Part number, or the worn part with a note of what it is doing wrong.

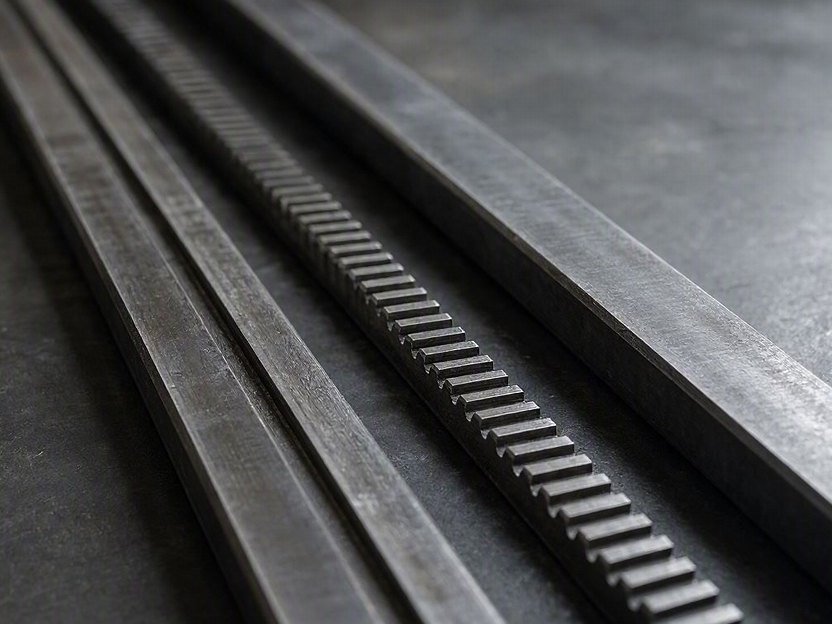

GuidingUpper and lower guide rails, guide teeth, conveyor chains
- Looks like
- The rails and teeth that guide the projectile straight across the shed.
- Feels like
- Long, straight and hardened. Wear shows as grooving along the running face.
- Comes as
- Ordered in as needed.
- Tell us
- Machine model and part number. A photo of the worn face helps.

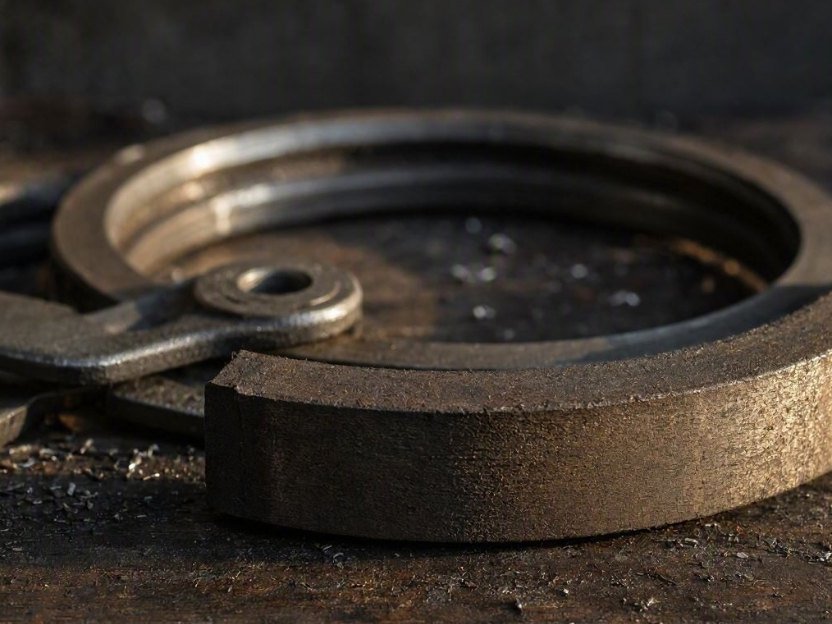

BrakingBrake linings, brake rings, deflecting and treadle levers
- Looks like
- Friction linings and rings from the braking mechanism.
- Feels like
- Slightly rough friction face. Wears down in service, like any brake.
- Comes as
- Ordered in as needed.
- Tell us
- Part number, or the old lining so we can match the thickness.

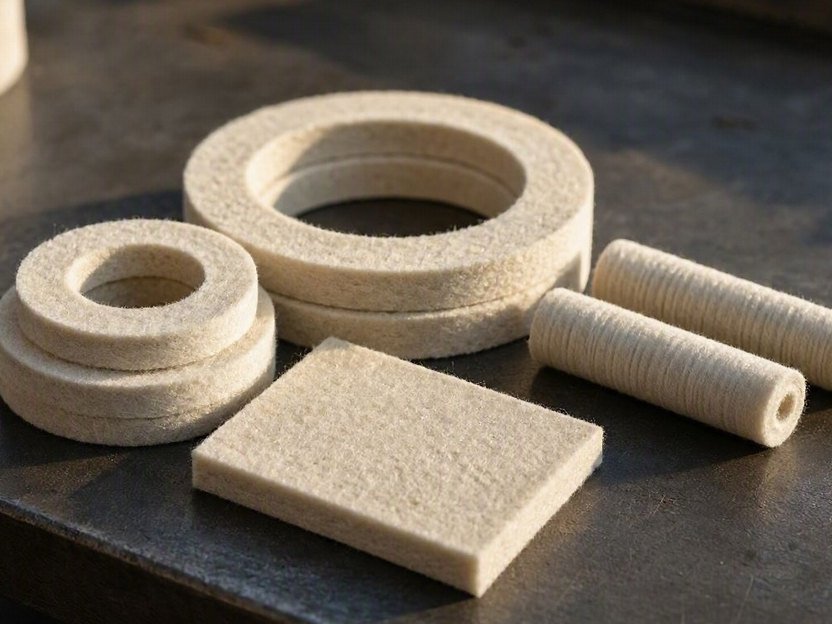

Felt and consumableWashers, oil wicks, damping pads, selvedge components
- Looks like
- The felt parts of the machine — washers, wicks, pads and selvedge components.
- Feels like
- The same wool felt as the rest of the range, cut to loom sizes.
- Comes as
- Usually held, because these are consumed constantly.
- Tell us
- Sizes, or send one of the old ones as a sample.
Part numbers are quoted against the number, drawing or worn part you send - not listed here, because the wrong revision on a stopped loom costs more than the part.
Photographs show what each grade looks like, not a particular batch. We source these goods rather than make them, so shade and finish vary a little between mills.
Both open WhatsApp. The order arrives with the blanks laid out — fill in grade, size and quantity and we will confirm price and lead time.
